直播推流:拉流@Swift5x#

直播推流/拉流在iOS@Swift5x最小实践#

  • 服务器（本地）：以MacOS和本地局域网为基础，辅以Homebrew ➤ node ➤ node-media-server@2.3.8

  • 视频采集端：iOS@Swift5x➕ HaishinKit ➤ 输出视频流

  • 服务器端（本地）：利用Apple主导的HLS技术切片成*.ts格式，➤ 进行推流

    • 因为是直播，所以*.ts文件，滚动生成，阅后即焚

  • 推流的效果（日志）

    • 建立推流成功输出

      12/9/2025 11:07:44 74341 [INFO] [rtmp connect] id=QJ4MR2YV ip=::ffff:192.168.2.2 app=live args={"swfUrl":null,"audioFourCcInfoMap":{"Opus":2},"app":"live","objectEncoding":0,"videoCodecs":128,"tcUrl":"rtmp://192.168.65.91:1935/live","audioCodecs":1024,"fpad":false,"flashVer":"FMLE/3.0 (compatible; FMSc/1.0)","videoFunction":1,"fourCcList":["hvc1","Opus"],"videoFourCcInfoMap":{"hvc1":3},"capsEx":0,"capabilities":239,"pageUrl":null}
12/9/2025 11:07:45 74341 [INFO] [rtmp publish] New stream. id=QJ4MR2YV streamPath=/live/jobs_test streamId=1
[postPublish] {
  id: undefined,
  StreamPath: '/live/jobs_test',
  args: [Object: null prototype] {}
}
12/9/2025 11:07:45 74341 [INFO] [Transmuxing HLS] /live/jobs_test to /Users/mac/Documents/Gits/JobsDocs/直播推流:拉流@Swift5x/local-live-server/media/live/jobs_test/index.m3u8
12/9/2025 11:07:45 74341 [INFO] [rtmp connect] id=4LJDLZKI ip=::ffff:127.0.0.1 app=live args={"app":"live","flashVer":"LNX 9,0,124,2","tcUrl":"rtmp://127.0.0.1:1935/live","fpad":false,"capabilities":15,"audioCodecs":4071,"videoCodecs":252,"videoFunction":1}
12/9/2025 11:07:45 74341 [INFO] [rtmp play] Join stream. id=4LJDLZKI streamPath=/live/jobs_test  streamId=1
12/9/2025 11:07:45 74341 [INFO] [rtmp publish] Handle audio. id=QJ4MR2YV streamPath=/live/jobs_test sound_format=10 sound_type=2 sound_size=1 sound_rate=3 codec_name=AAC 48000 1ch
12/9/2025 11:07:45 74341 [INFO] [rtmp publish] Handle video. id=QJ4MR2YV streamPath=/live/jobs_test frame_type=1 codec_id=7 codec_name=H264 0x0

    • 采样设备黑屏输出

      12/9/2025 11:09:01 74341 [INFO] [rtmp publish] Close stream. id=QJ4MR2YV streamPath=/live/jobs_test streamId=1
[donePublish] {
  id: undefined,
  StreamPath: '/live/jobs_test',
  args: [Object: null prototype] {}
}
12/9/2025 11:09:01 74341 [INFO] [rtmp disconnect] id=QJ4MR2YV
12/9/2025 11:09:01 74341 [INFO] [rtmp play] Close stream. id=4LJDLZKI streamPath=/live/jobs_test streamId=1
12/9/2025 11:09:01 74341 [INFO] [rtmp disconnect] id=4LJDLZKI
12/9/2025 11:09:01 74341 [INFO] [Transmuxing end] /live/jobs_test

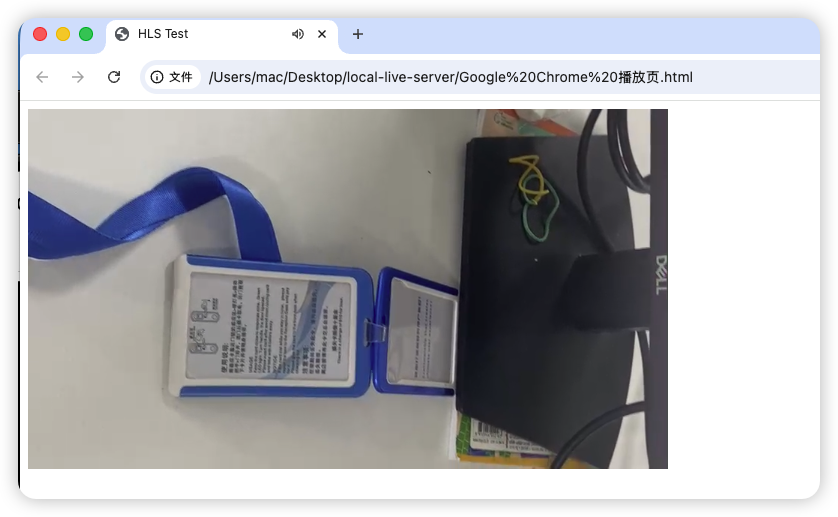

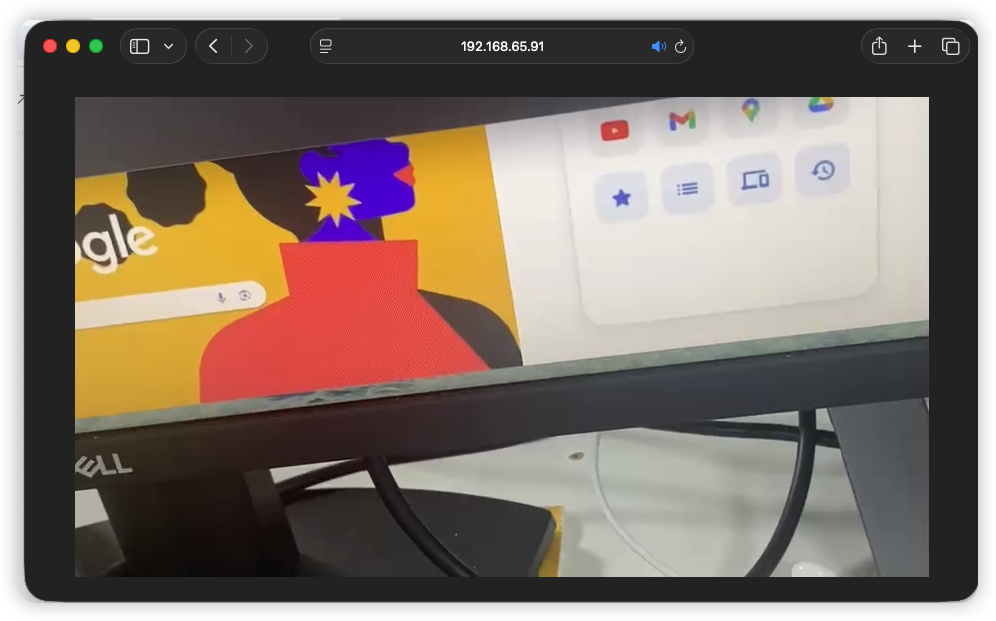

  • 拉流的效果
